Client: Jazan Municipality
Abu Arish Sewage Treatment Plant O&M Project in Jazan
About Abu Arish
Abu Arish is a community in the south west of Saudi Arabia, part of Jazan Province. Before the new plant, tankers were discharging into a man-made lagoon approximately 25 km away from the city.
Abu Arish STP

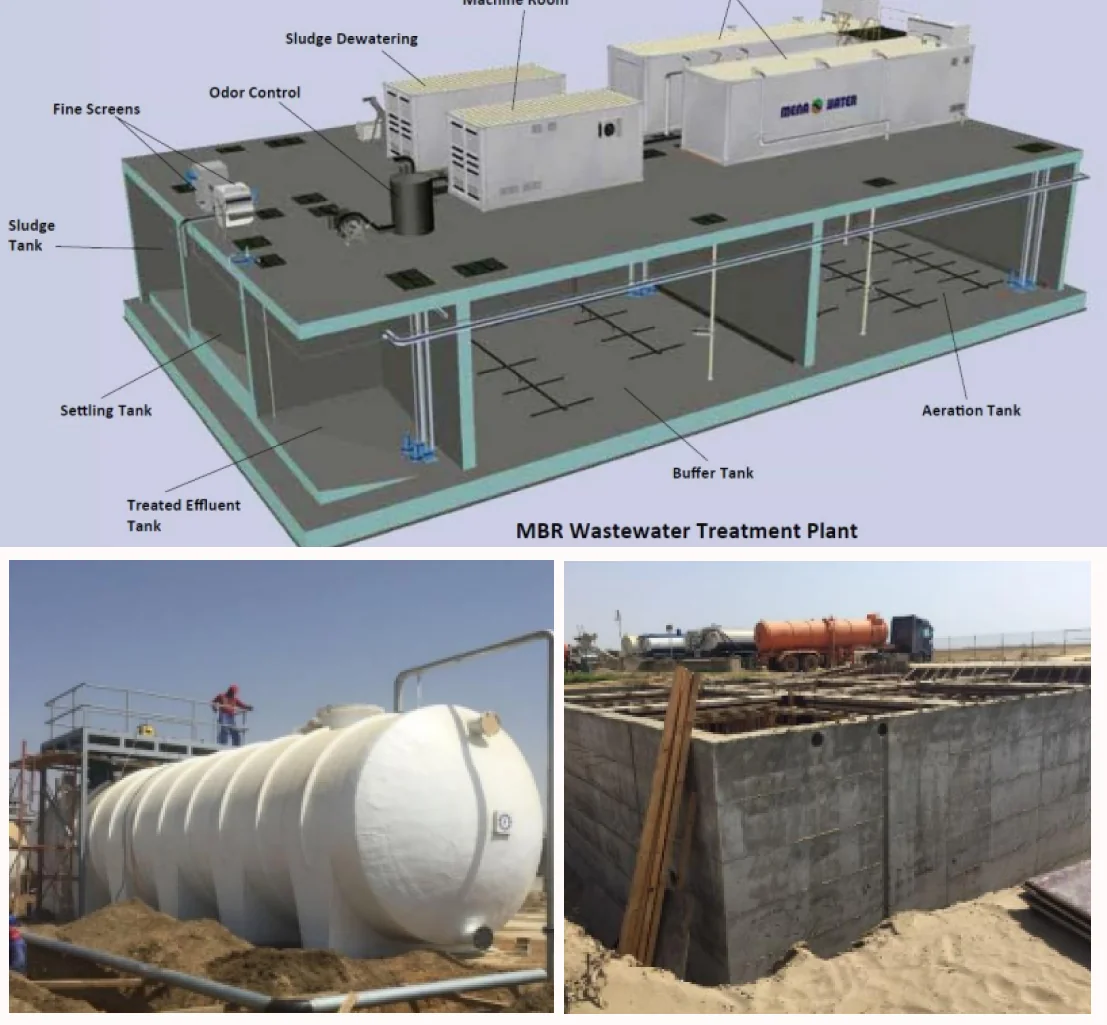

Abu Arish STP is designed to receive waste water by tanker discharge from the surrounding community. MENA-Water provided the complete design for the 1,000 m³/day MBR-based plant.
Scope of Work
MENA-Water provided design, supply, installation and commissioning.
FK & Partner Co. is operating and fully responsible for O&M of the complete plant.
Plant includes screening, grit removal, aeration, MBR system and is operated by PLC.
Plant Specifications
| Equipment / Parameter | Application / Value |
|---|---|
| Screening System | Coarse & Fine Screens |
| Grit Removal | Aerated Grit Chamber |
| Lifting Station | Submersible Pumps |
| Aeration | Fine Bubble Diffusers |
| MBR System | Membrane Bioreactor |
| Storage Tank | Treated Water Storage |
| Sludge Drying | Drying Beds |
| Control System | PLC Auto-Control |
| Power Supply | 480 V / 3 Phase |
| Treatment Capacity | 1,000 m³/day |
Capabilities
Products & Services Delivered
Compact plants for wastewater recycling in diverse industries
Dissolved air flotation plants for the treatment of oily waters
Membrane separation processes for water treatment and recirculation
Biological treatment process for handling difficult effluents
Plants for thermal sterilization, decontamination and desalination
Customized solutions for individual applications
Full engineering services and O&M support
