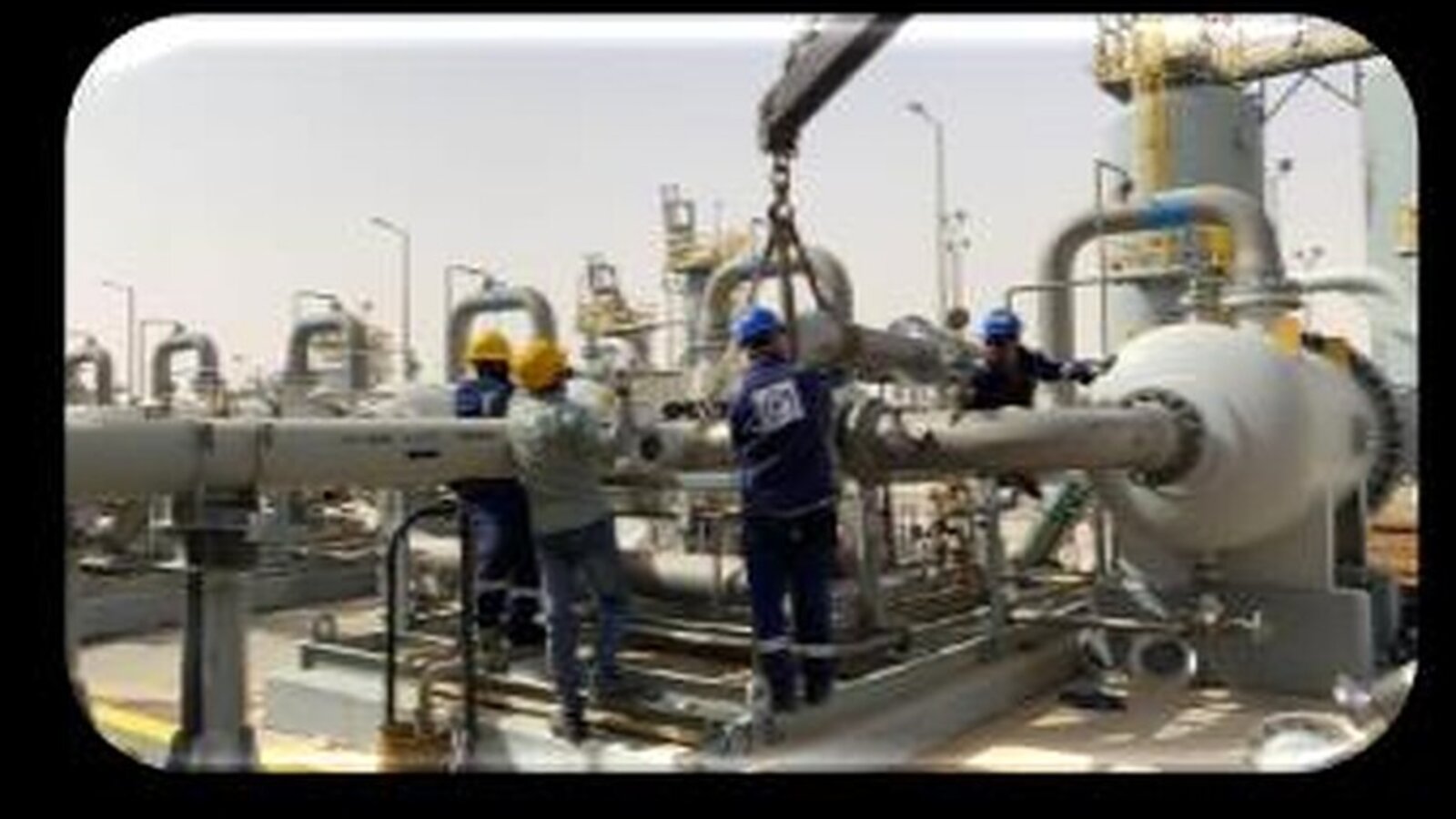

Self-Cleaning Strainers at Ain Dar SRF Plant — V1, Saudi Aramco
Ain Dar Plant is an essential operational facility supporting industrial and oilfield activities in the Ain Dar area. The plant provides critical services, utilities, and processing capabilities that ensure continuous and reliable operations for the surrounding infrastructure.
The sea water prefiltration system for the Sulfate Removal Plant in Ain Dar comprises a basket strainer (100-micron), pre-guard (10-micron), and guard (5-micron) cartridge filters (CF); however, the system experiences high frequency of CF replacement.
IE-Consult reviewed quality issues, designed the expanded SCS solution, and provided engineering management.
FK & Partner Co.: Case evaluation, technical proposal, SCS selection & supply, piping modification & fabrication, site construction, and commissioning.
| Equipment / Parameter | Application / Value |
|---|---|
| Automatic SCS SS-316, 100-micron | 4 units — sintered screens, sea water duty coating |
| Automatic SCS SS-316, 50-micron | 6 units — sintered screens, sea water duty coating |
| Microprocessor Controller | 2 units — preset DPS + 24Vac solenoid valves |
| Butterfly Valves (pneumatic) | 6 units — lug type, single acting |
| Local Control Panel | 1 unit |
| Capacity | 92,000 m3/day |
