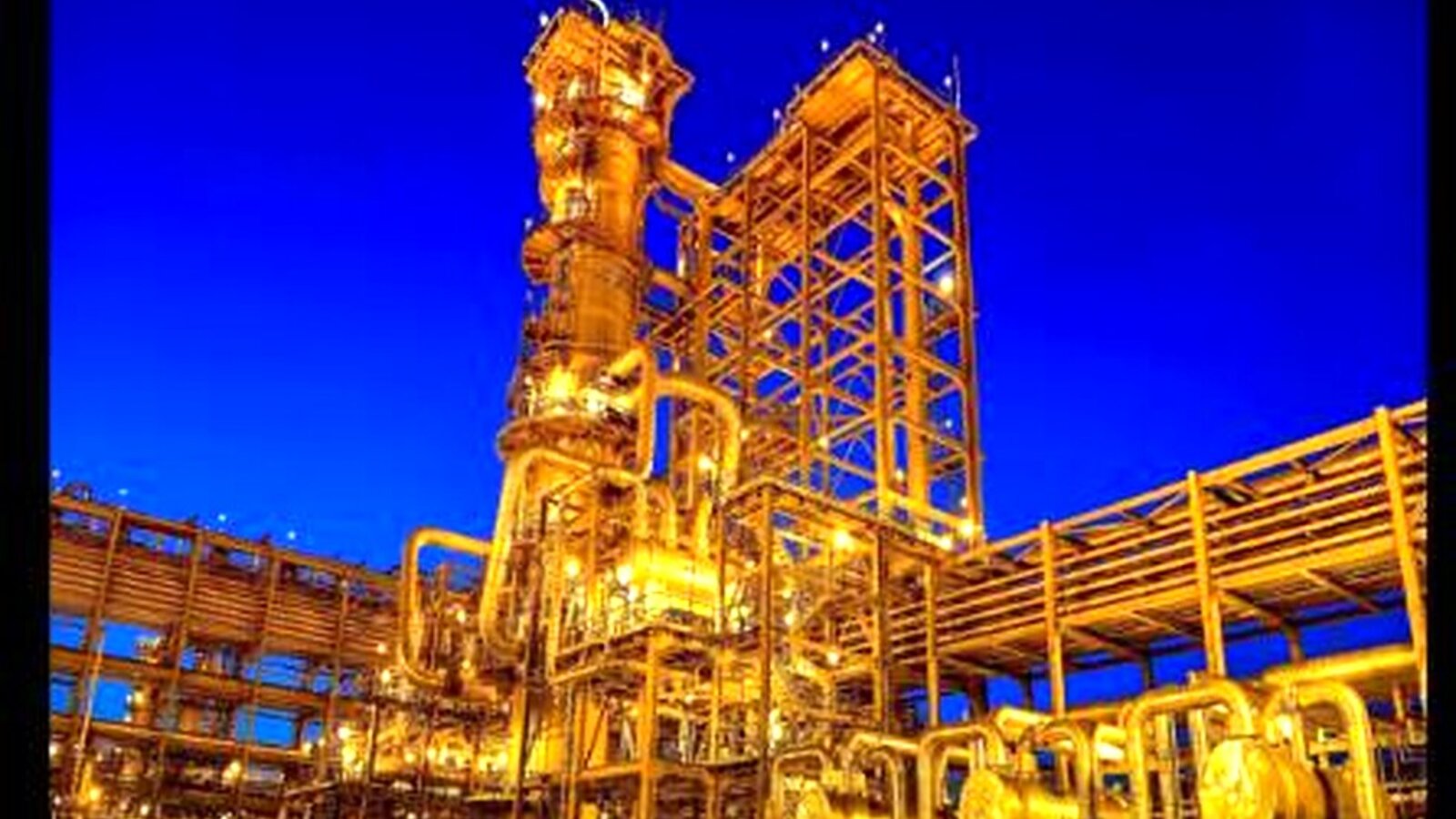

Wastewater Treatment Facilities SDS 1 — Jizan Refinery
A supply-install-operate facility that strips sulfide from 30,000 m³ of accumulated sour water in Tank D-0101 — from about 8,000 ppm down to under 1 ppm — for compliant discharge to the Jazan WWTP.
Supply, installation, and operation of a facility to remove sulphides from ~30,000 m³ of accumulated sour water in Tank D-0101, cutting sulphide from ~8,000 ppm to under 1 ppm to meet Jazan WWTP discharge limits.
The design was led by IE-Consult; FK & Partner Co. and its affiliate Water Technology Company (W-Tech) supplied and installed the complete treatment train, pipelines, and instrumentation, and ran it through commissioning.
The sour water in Tank D-0101 carried sulfide around 8,000 ppm and oily content up to 10,000 ppm — well outside what the Jazan WWTP can accept — and H₂S released during handling is both an odour nuisance and a safety hazard.
- Sulfide ~8,000 ppm → required < 1 ppm
- Oil content up to 10,000 ppm
- H₂S odour & safety control
- Hard Jazan WWTP inflow limit
A treatment train sequenced to the contaminants.

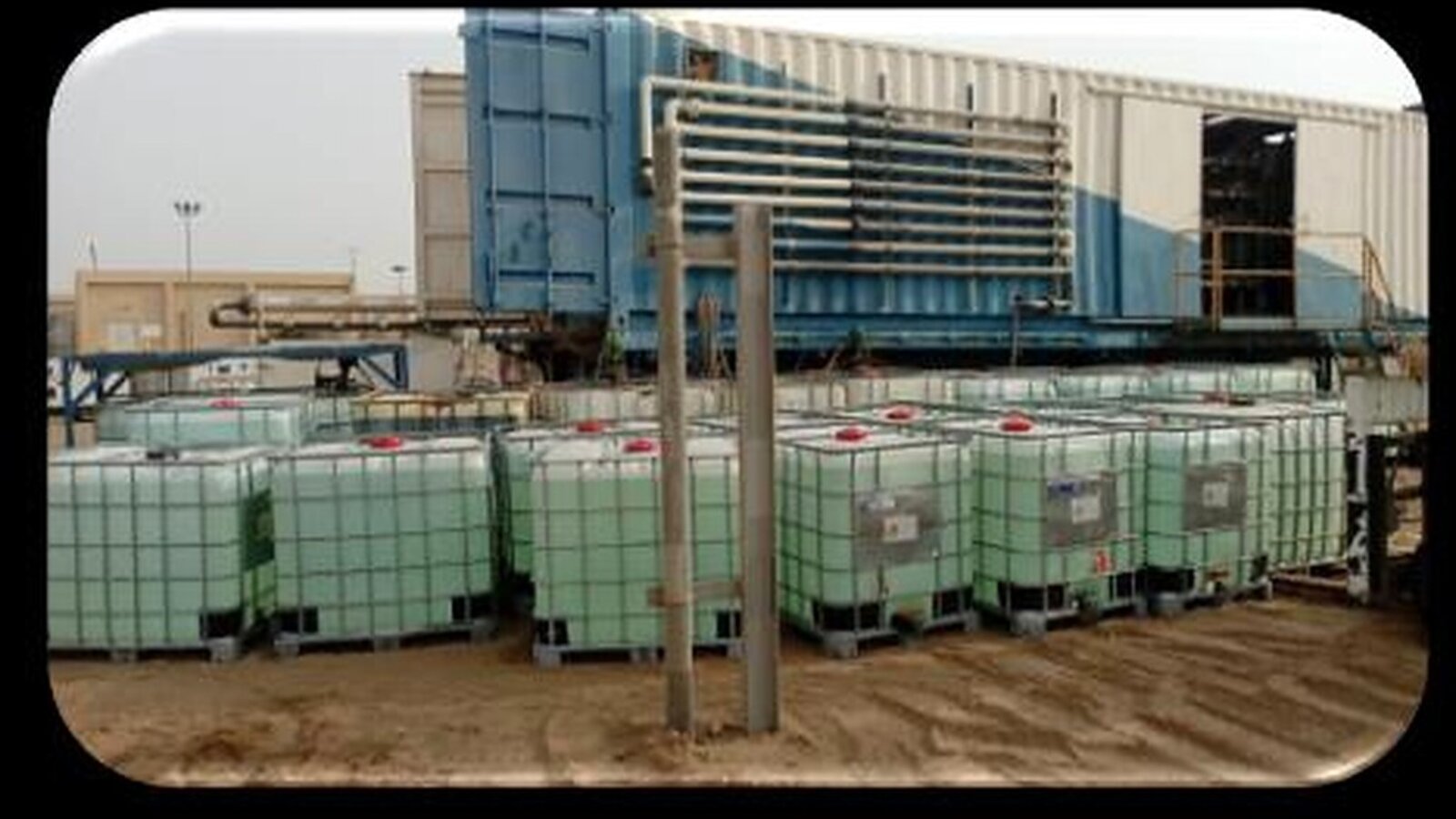

A cyclone oil-water separator (up to 10,000 ppm oil at ≤ 20 m³/hr) takes the first cut, DAF removes remaining suspended solids, a multi-media filter polishes TSS, a sulfide-scavenger dosing system drives sulfide toward the sub-1-ppm target, and activated-carbon units capture H₂S.
| Equipment / parameter | Application / value |
|---|---|
| Oil-Water Separator | Cyclone type |
| DAF | Coagulation / flotation |
| Target sulphide | <1 ppm (from ~8,000) |
| Total volume | 30,000 m³ |
| Capacity | 30,000 m³ (Tank D-0101) |
| Project type | Industrial sour-water treatment (supply, install & operate) |
Sulphide cut from ~8,000 ppm to <1 ppm
Cyclone oil-water separation + DAF
Activated carbon for H₂S odour capture
Verified post-commissioning performance figures (achieved effluent, throughput, uptime) to be confirmed — see CONTENT_GAPS.
