Wastewater Treatment Facilities for SDS 2 — Jizan Refinery

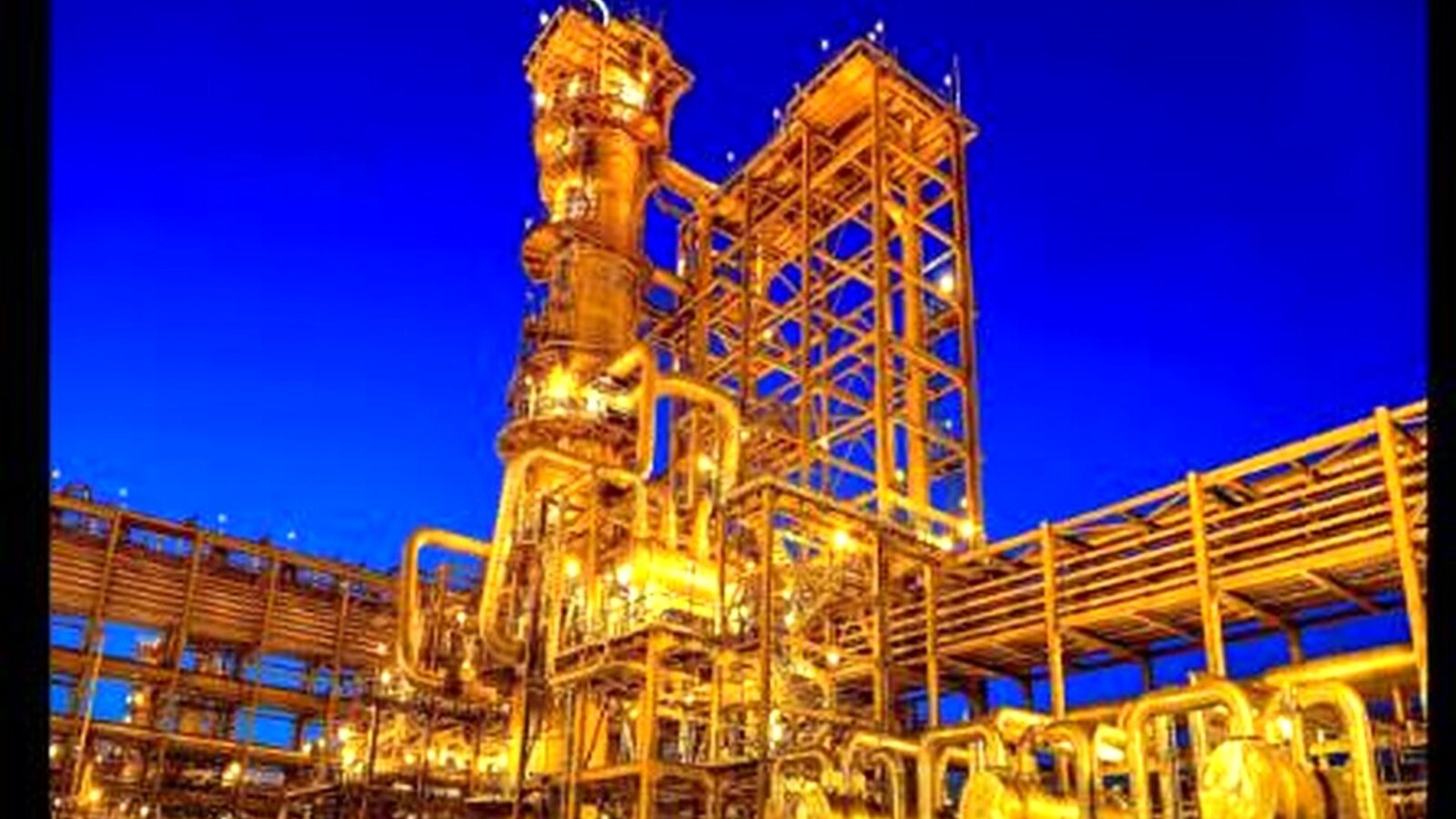

Jizan Refinery, on the Red Sea coast in southwest Saudi Arabia, is one of Saudi Aramco's newest facilities with ~400,000 barrels/day processing capacity. It produces clean fuels to international standards with hydrotreating, hydrocracking, and sulfur recovery units.
Supply, installation, and operation of a treatment system to process pretreated wastewater from Basins A and B to meet existing Water Treatment Plant inflow quality requirements. System handles up to 100 m3/hr with oil-water separator, DAF, sulfide scavenger, and activated carbon. Total volume: 275,000 m3.
IE-Consult provided complete design, engineering solution, and project management.
FK & Partner Co. & W-Tech Co. supplied and installed oil-water separator (100 m3/hr, up to 10,000 ppm oil), DAF unit, sulfide scavenger dosing, and activated carbon units.
All supporting equipment, pipelines, and instrumentation supplied and installed as a complete system.
| Equipment / Parameter | Application / Value |
|---|---|
| Cyclone Oil-Water Separator | 100 m3/hr — oil droplet separation |
| DAF | Coagulation / Floatation |
| MM Filter | TSS removal |
| Sulfide Scavenger Dosing System | Sulfide treatment of wastewater |
| Activated Carbon | Odor control — H2S capture |
| Total Volume | 275,000 m3 |
