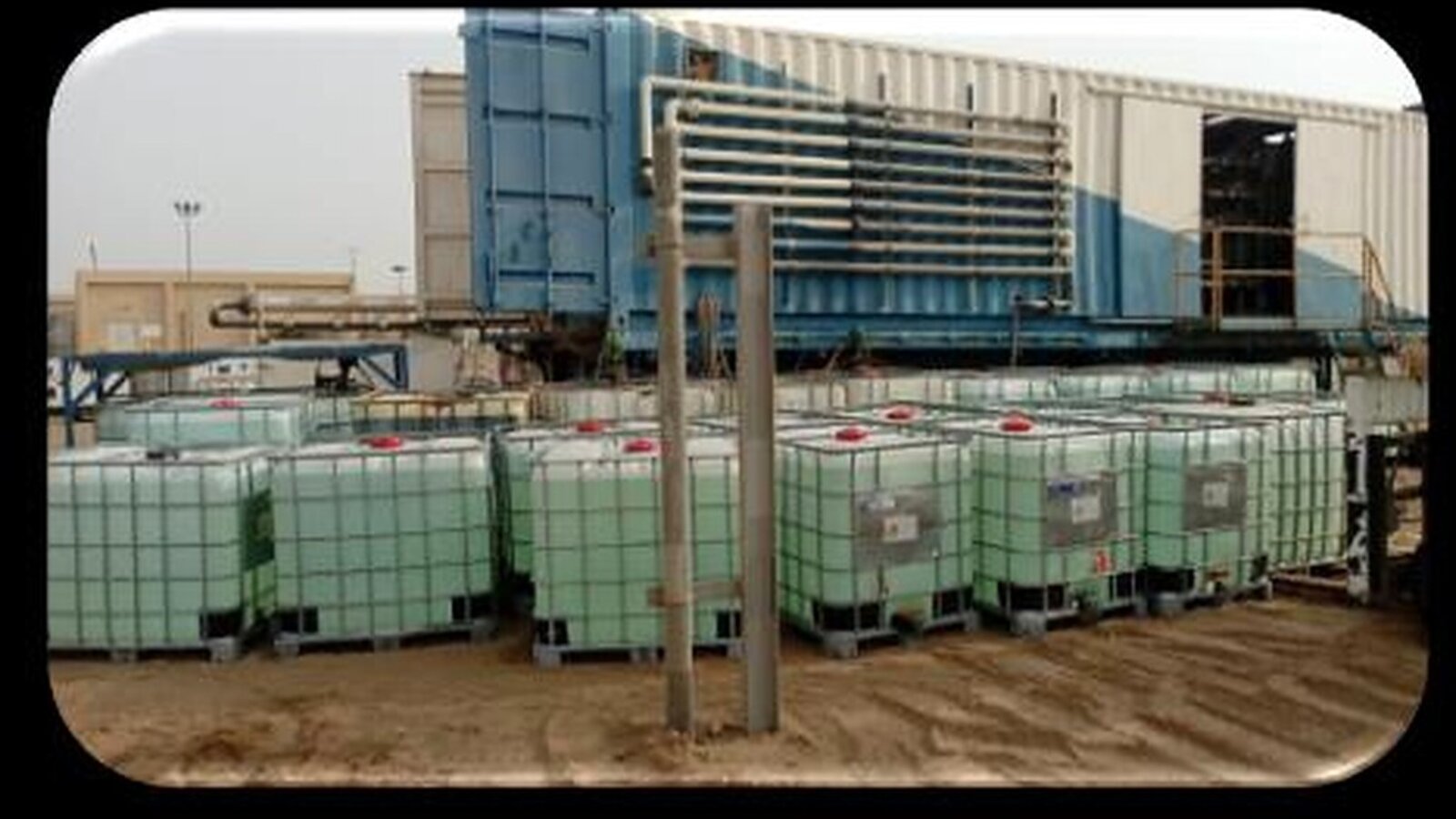

Wastewater Treatment Facilities for SDS 1 — Jizan Refinery
Jizan Refinery, on the Red Sea coast in southwest Saudi Arabia, is one of Saudi Aramco's newest facilities with ~400,000 barrels/day capacity of Arabian Heavy crude. It includes hydrotreating, hydrocracking, and sulfur recovery units producing clean fuels to international standards.
Supply, installation, and operation of a treatment facility to remove sulfides from ~30,000 m3 of accumulated sour water in Tank D-0101 at Jizan Refinery. Target: reduce sulfide concentration from ~8,000 ppm to less than 1 ppm, meeting Jazan WWTP discharge requirements.
IE-Consult provided complete design, engineering solution, and project management.
FK & Partner Co. & W-Tech Co. supplied and installed oil-water separator (10,000 ppm oil, 20 m3/hr), DAF unit, sulfide scavenger dosing system, and activated carbon units for H2S capture.
All pipelines, instrumentation, and supporting equipment supplied and installed as a complete system.
| Equipment / Parameter | Application / Value |
|---|---|
| Cyclone Oil-Water Separator | Separate oil droplets from water phase |
| DAF | Coagulation / Floatation |
| MM Filter | TSS removal |
| Sulfide Scavenger Dosing System | Sulfide treatment of wastewater |
| Activated Carbon | Odor control — H2S capture |
| Target Sulfide Level | <1 ppm (from ~8,000 ppm) |
| Total Volume | 30,000 m3 |
